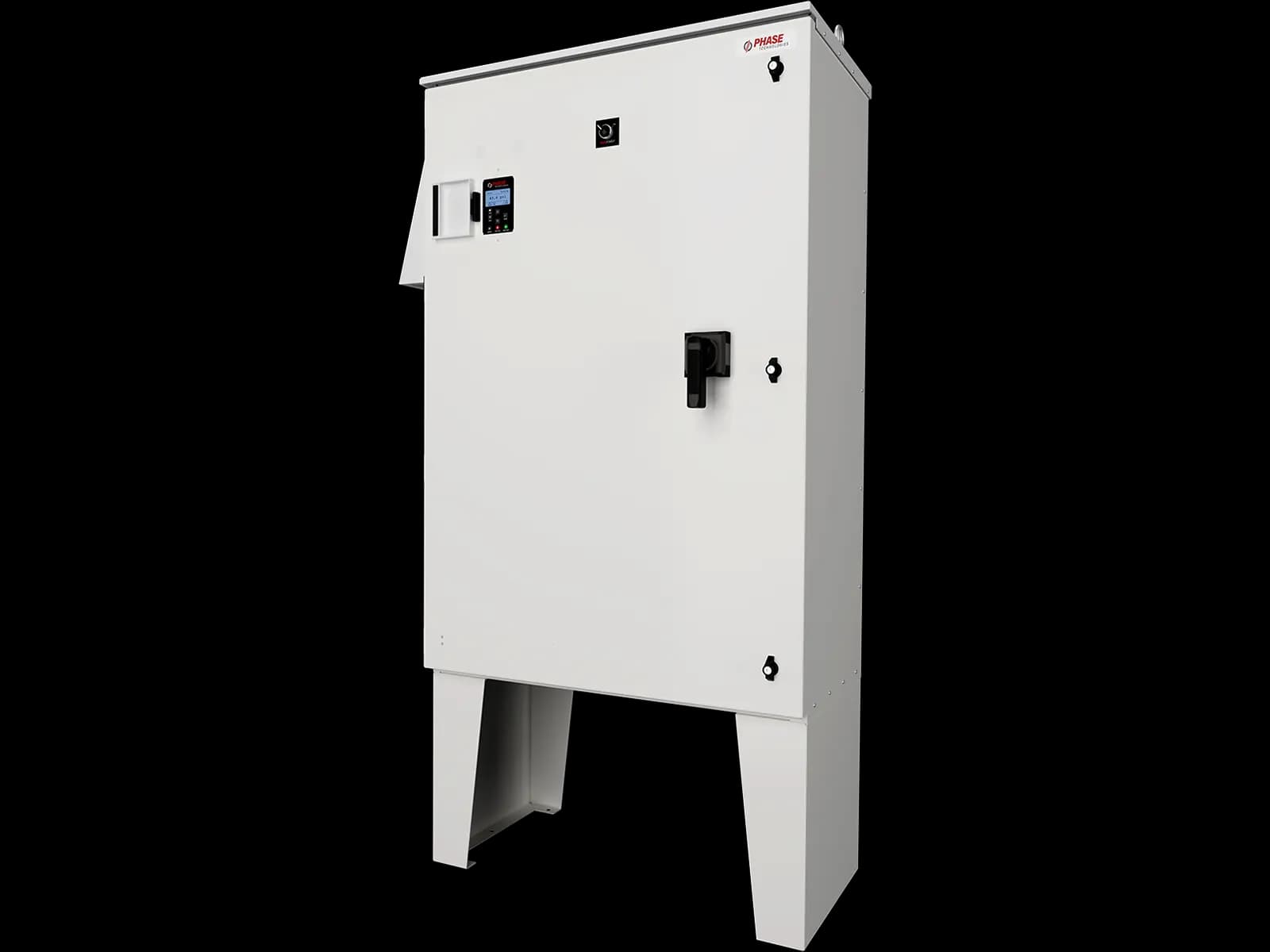

3LHSeries - Configured Panel

Phase Converting, Voltage Doubling, General Purpose VFD for Pumping.

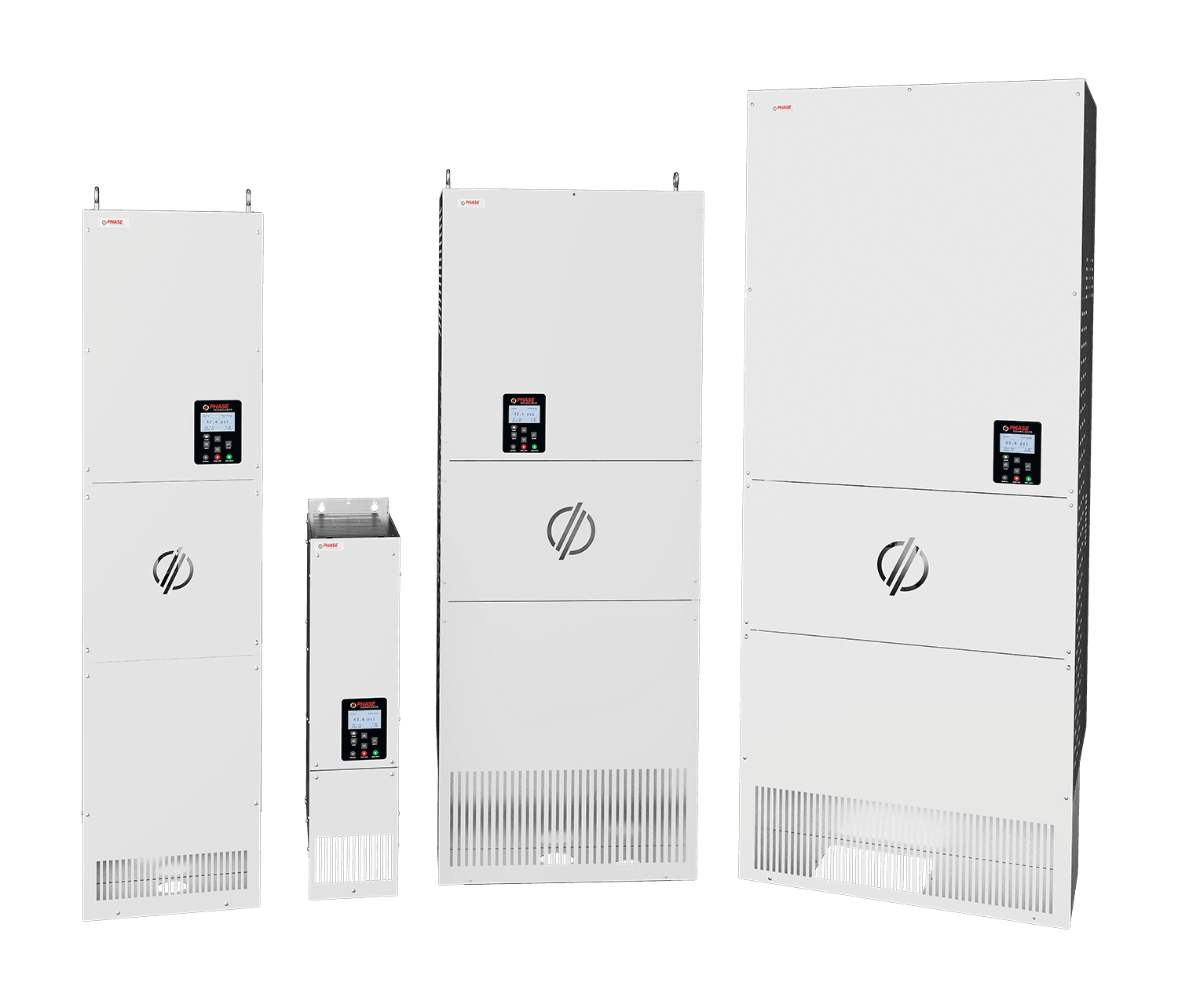

Phase Technologies revolution of low-harmonic drives continues with our 3LH. This large horsepower phase converting, voltage doubling, general purpose drive is perfect for deep well pumping and long lead applications.

Eliminate the need for a transformer and take over control of your pumping needs while enjoying the active front end technology and standard IEEE-519 compliant benefits that come with our 3LH. If you need to keep constant pressure with deep wells, this is your drive.

Overview

Your do it all VFD for large scale pumping and irrigation needs, the 3LH, features active front end technology, voltage doubling capabilities, and AuxPower irrigation control. This technology and force allow users to power their pump and pivot with a single system, saving our customers thousands overtime.

Features

  • Rugged NEMA 3R enclosure designed for the outdoors
  • All steel construction
  • Protective insect guards
  • Pre-cut conduit openings
  • Large graphic display with black-lit screen & intuitive interface
  • Flexible I/O
  • Modbus
  • Ethernet
  • Downloadable Parameters
  • 40°C (104°F) Rated

Easy Setup Wizards

  • Constant Pressure
  • Flow Control
  • Tank Level Control
  • Pump Down
  • Suction Pump
  • HVAC

Specifications

Operating Temperature Range:  -40 °C - 50 °C (-40 °F - 122 °F)
Input Phase:  single-phase
Output Phase:  three-phase
Nominal Voltage Range:  230 V - 460 V
Output Type:   V/f control
Short Circuit Withstand Rating:     25 kA RMS symmetrical amps
Analog Inputs:  (2) 4 - 20 mA, (1) 0 - 5 VDC
Digital Inputs:  (4) programmable
Relay Outputs:  (2) programmable, 5 VDC 7A at 240 VAC

Models

Input Voltage: 230
ModelHorsepowerInput VoltageOutput Voltage Rated Input Current Rated Output Current Configure
3LH005523023018 A18 A
3LH0077.523023025 A25 A
3LH0101023023031 A31 A
3LH0151523023046 A46 A
3LH0202023023061 A61 A
3LH0252523023075 A75 A
3LH0303023023091 A91 A
3LH205523046018 A9 A
3LH2077.523046025 A13 A
3LH2101023046030 A18 A
3LH2151523046046 A25 A
3LH2202023046061 A31 A
3LH2303023046091 A46 A
3LH24040230460121 A61 A
3LH25050230460154 A77 A
3LH26060230460182 A91 A
3LH27575230460214 A107 A
Input Voltage: 460
ModelHorsepowerInput VoltageOutput Voltage Rated Input Current Rated Output Current Configure
3LH40554604609 A9 A
3LH4077.546046013 A13 A
3LH4101046046018 A18 A
3LH4151546046025 A25 A
3LH4202046046031 A31 A
3LH4252546046038 A38 A
3LH4303046046046 A46 A
3LH4404046046061 A61 A
3LH4505046046077 A77 A
3LH4606046046091 A91 A
3LH47575460460107 A107 A
3LH4100100460460142 A142 A
3LH4125125460460172 A172 A
3LH4150150460460198 A198 A
3LH4200200460460250 A250 A
3LH4250250460460304 A304 A
3LH4300300460460362 A362 A
3LH4350R350460460415 A415 A
3LH4400R400460460515 A515 A
3LH4500R500460460608 A608 A
