XR Series

Output Load Reactors

1.5% & 3% Impedance | 9 - 480 A | 480 V | Open, NEMA 1, and NEMA 3R

Extends the life of a motor, bearings, and cable
Smooths voltage spikes and high frequency noise
Rugged compact design

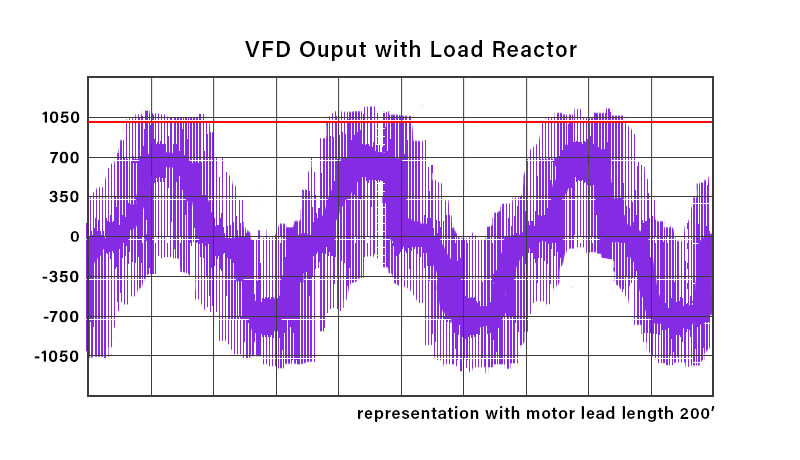

Recommended lead length 0 - 200'
Manufactured, assembled, and tested in the U.S.

Models

Model	Horsepower	Max Current
XR008	5	8 A
XR011	7.5	11 A
XR014	10	14 A
XR021	15	21 A
XR027	20	27 A
XR034	25	31 A
XR040	30	40 A
XR052	40	52 A
XR065	50	65 A
XR077	60	77 A
XR096	75	96 A
XR124	100	124 A
XR156	125	156 A
XR180	150	180 A
XR240	200	240 A
XR302	250	302 A
XR361	300	361 A
XR414	350	414 A
XR477	400	477 A

Uncommon Value in Motor Protection

Phase Technologies is pleased to offer the XR Series load reactors for short to medium lead motor applications.

Phase Technologies XR Series output filters are designed with distributed gap alloy powder cores resulting in superior peak voltage reduction, lower core losses, higher temperature stability, and a more compact product envelope.

The XR Series output reactors are completely manufactured in the U.S. using our vertically integrated manufacturing processes include: coil winding, varnishing, sheet metal enclosure fabrication, fully automated wire processing center, and an advanced printed circuit board assembly line.

All stand alone output filters are tested and certified to the UL508 standard.
